LFB22304040066 | FTcap

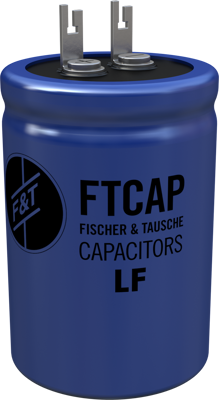

Electrolytic capacitor, 22000 µF, 40 V (DC), -10/+30 %, can, Ø 40 mm, LFB22304040066
Unit Price (€ / pc.)
11.4240 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,284.80 € *
Price list
Quantity
Price per unit*
200 pcs.
11.4240 €
500 pcs.
11.0789 €
1000 pcs.
10.5077 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1014296, FTcap
The 1014296 electrolytic capacitor features high capacitance and high perfomance. This product has a long useful life.
Features
- All contacts welded
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Telecommunications
Technical specifications
| Rated voltage (DC) | 40 V | |
| Capacity | 22000 µF | |
| diameter | 40 mm | |
| Length | 66 mm | |
| Version | polar | |
| Design | can | |
| min. operating temperature | -40 °C | |
| Connection | soldering lug | |
| Tolerance | -10/+30 % | |
| max. operating temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
