LFB22302535050 | FTcap

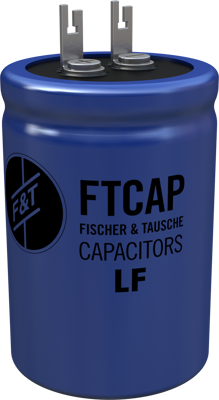

Electrolytic capacitor, 22000 µF, 25 V (DC), -10/+30 %, can, Ø 35 mm, LFB22302535050
Unit Price (€ / pc.)
8.0206 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,604.12 € *
Price list
Quantity
Price per unit*
200 pcs.
8.0206 €
500 pcs.
7.7707 €
1000 pcs.
7.3780 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, 1014290, FTcap
The 1014290 electrolytic capacitor features high capacitance and high perfomance. This product has a long useful life.
Features
- All contacts welded
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Telecommunications
Technical specifications
| Rated voltage (DC) | 25 V | |
| Capacity | 22000 µF | |
| diameter | 35 mm | |
| Length | 50 mm | |
| Version | polar | |
| Design | can | |
| min. operating temperature | -40 °C | |
| Connection | soldering lug | |
| Tolerance | -10/+30 % | |
| max. operating temperature | 85 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
