LFB22210035050 | FTcap
Electrolytic capacitor, 2200 µF, 100 V (DC), -10/+30 %, can, Ø 35 mm, LFB22210035050
Unit Price (€ / pc.)
12.8520 € *
Available: 310 pcs.
Total Price:
12.85 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8520 €
10 pcs.
9.1749 €
25 pcs.
7.8421 €
50 pcs.
6.8187 €
100 pcs.
6.1999 €
*incl. VAT plus shipping costs
Subject to prior sale

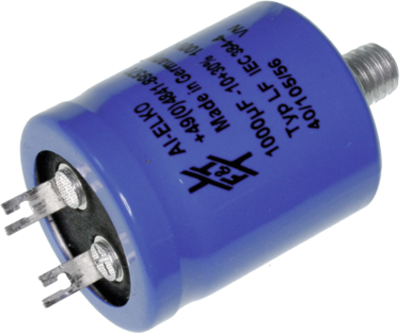

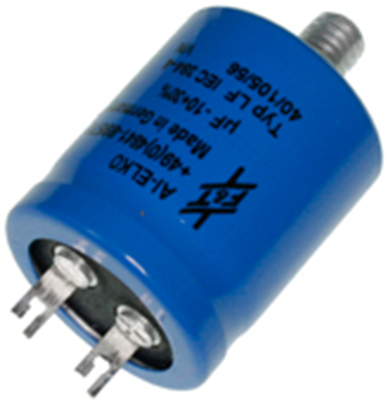

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 100 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 45 mΩ | |
| Tolerance | -10/+30 % | |
| Length | 50 mm | |
| Design | can | |
| Capacity | 2200 µF | |
| Connection | soldering lug | |
| Ripple current | 3.4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
