LFB2220633036 | FTcap

Electrolytic capacitor, 2200 µF, 63 V (DC), -10/+30 %, can, Ø 30 mm, LFB2220633036

Order No.: 18D610
EAN: 4099879874092
MPN:
LFB2220633036
1014277
Series: LFB

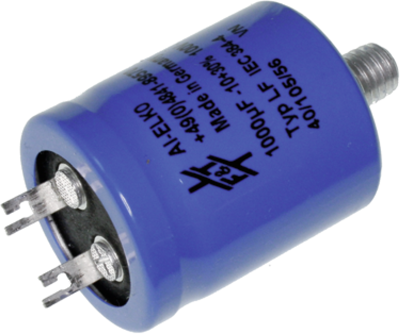

LFB2220633036 FTcap Electrolytic Capacitors Image 1

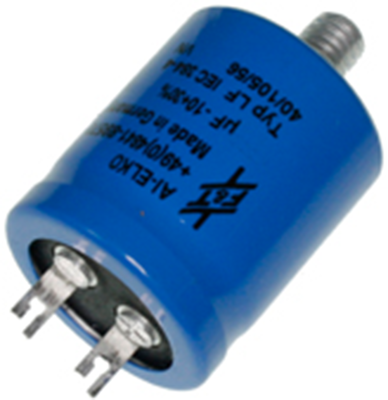

LFB2220633036 FTcap Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
6.5450 € *
Available: 406 pcs.
Leadtime: 10 Weeks **
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5450 €
10 pcs.
5.7715 €
100 pcs.
5.0575 €
250 pcs.
4.8552 €
1000 pcs.
4.5458 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor in aluminum can, type FTCAP LFB.

Polarized, with threaded mounting studs and solder lug terminals

Rated voltage 63 VDC.

Technical specifications
Rated voltage (DC) 63 V
Capacity 2200 µF
diameter 30 mm
Length 36 mm
Version polar
Design can
min. operating temperature -40 °C
Connection soldering lug
Tolerance -10/+30 %
max. operating temperature 85 °C
Logistics
Country of origin DE
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
