LFB22206330036 | FTcap

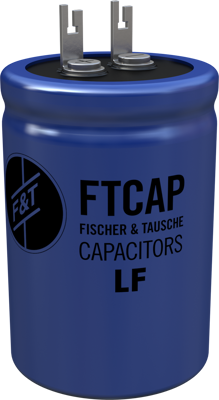

Electrolytic capacitor, 2200 µF, 63 V (DC), -10/+30 %, can, Ø 30 mm, LFB22206330036
Unit Price (€ / pc.)
5.9976 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2,998.80 € *
Price list
Quantity
Price per unit*
500 pcs.
5.9976 €
1000 pcs.
5.8191 €
3000 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1014277, FTcap
The 1014277 electrolytic capacitor features high capacitance and high perfomance. This product has a long useful life.
Features
- All contacts welded
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 63 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| diameter | 30 mm | |
| Tolerance | -10/+30 % | |
| Length | 36 mm | |
| Design | can | |
| Capacity | 2200 µF | |
| Connection | soldering lug |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
