LFB22204025036 | FTcap
Electrolytic capacitor, 2200 µF, 40 V (DC), -10/+30 %, can, Ø 25 mm, LFB22204025036
Unit Price (€ / pc.)
11.1384 € *
Available: 116 pcs.
Total Price:
11.14 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1384 €
10 pcs.
7.9611 €
100 pcs.
6.8068 €
500 pcs.
5.9143 €
1000 pcs.
5.3669 €
*incl. VAT plus shipping costs
Subject to prior sale

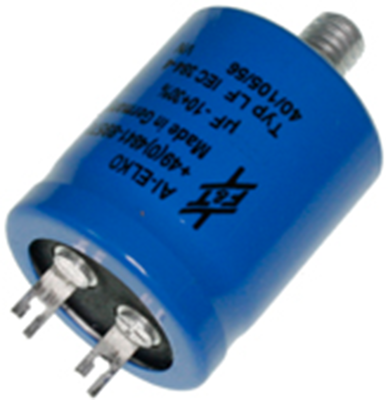

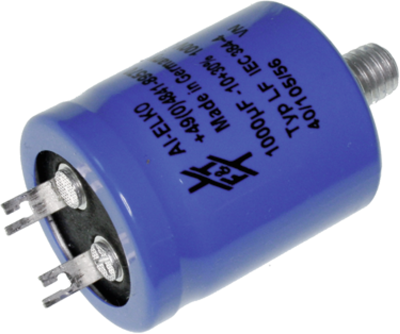

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | soldering lug | |
| Rated voltage (DC) | 40 V | |
| Length | 36 mm | |
| Design | can | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| diameter | 25 mm | |
| Ripple current | 2.2 A | |
| Version | polar | |
| Capacity | 2200 µF | |
| Tolerance | -10/+30 % | |
| ESR (Equivalent Series Resistance) | 60 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
