LFB15304035066 | FTcap
Electrolytic capacitor, 15000 µF, 40 V (DC), -10/+30 %, can, Ø 35 mm, LFB15304035066
Unit Price (€ / pc.)
6.8306 € *
Standard delivery time from the manufacturer is: 12 Weeks

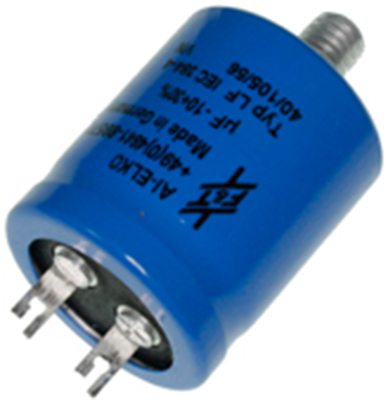

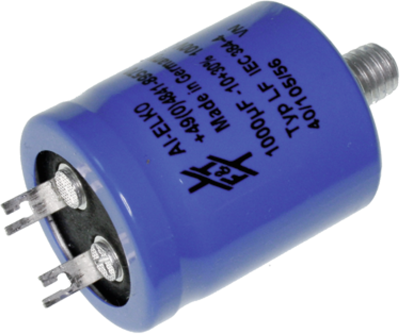

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 15000 µF | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % | |
| ESR (Equivalent Series Resistance) | 19 mΩ | |
| Ripple current | 4.8 A | |
| Design | can | |
| Connection | soldering lug | |
| diameter | 35 mm | |
| Length | 70 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
