LFB10306335066 | FTcap
Electrolytic capacitor, 10000 µF, 63 V (DC), -10/+30 %, can, Ø 35 mm, LFB10306335066
Unit Price (€ / pc.)
14.8631 € *
Next delivery: 199 pcs. on 2025-09-19
Total Price:
14.86 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8631 €
10 pcs.
13.0900 €
50 pcs.
12.1856 €
150 pcs.
11.6620 €
500 pcs.
11.0551 €
*incl. VAT plus shipping costs
Subject to prior sale

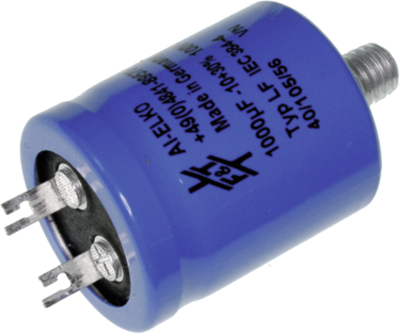

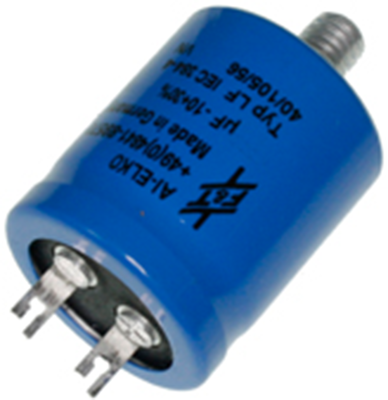

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 63 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 10000 µF | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 63 V | |
| ESR (Equivalent Series Resistance) | 21 mΩ | |
| Connection | soldering lug | |
| max. operating temperature | 85 °C | |
| Ripple current | 5.5 A | |
| Design | can | |
| Tolerance | -10/+30 % | |
| Length | 70 mm | |
| diameter | 35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
