LFB10304035050 | FTcap
Electrolytic capacitor, 10000 µF, 40 V (DC), -10/+30 %, can, Ø 35 mm, LFB10304035050
Unit Price (€ / pc.)
12.9115 € *
Available: 101 pcs.
Next delivery: 100 pcs. on 2026-01-23
Total Price:
12.91 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9115 €
10 pcs.
11.3526 €
50 pcs.
10.5910 €
150 pcs.
10.1150 €
500 pcs.
9.6033 €
*incl. VAT plus shipping costs
Subject to prior sale

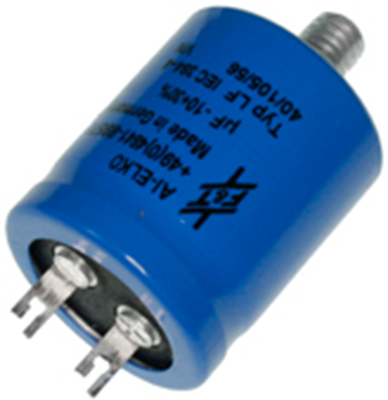

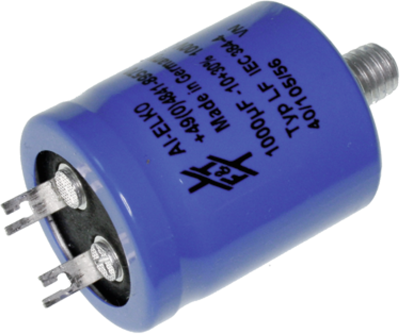

Electrolytic capacitor in aluminum can, type FTCAP LFB.
Polarized, with threaded mounting studs and solder lug terminals
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 40 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| diameter | 35 mm | |
| ESR (Equivalent Series Resistance) | 25 mΩ | |
| Tolerance | -10/+30 % | |
| Length | 50 mm | |
| Design | can | |
| Capacity | 10000 µF | |
| Connection | soldering lug | |
| Ripple current | 3.2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
