GW33240090069 | FTcap
Electrolytic capacitor, 3300 µF, 400 V (DC), -10/+30 %, can, Ø 90 mm, GW33240090069
Unit Price (€ / pc.)
72.8280 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,641.40 € *
Price list
Quantity
Price per unit*
50 pcs.
72.8280 €
100 pcs.
70.6384 €
300 pcs.
66.9970 €
*incl. VAT plus shipping costs
Subject to prior sale

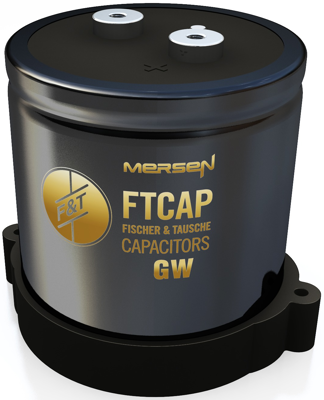

Electrolytic capacitor, 1013700, FTcap
The 1013700 electrolytic capacitor features high ripple current and thermal conducting pad. This product is best suited for heatsink mounting.
Features
- All contacts welded
- RoHS compliant
- REACH compliant
Applications
- Inverter/drives
- Traction
- Industrial
- Welding
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 3300 µF | |
| diameter | 90 mm | |
| max. operating temperature | 105 °C | |
| Length | 69 mm | |
| min. operating temperature | -40 °C | |
| Ripple current | 9.8 A | |
| Design | can | |
| Connection | screw connection | |
| ESR (Equivalent Series Resistance) | 34 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 400 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
