GW22245090069 | FTcap
Electrolytic capacitor, 2200 µF, 450 V (DC), -10/+30 %, can, Ø 90 mm, GW22245090069
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
72.8280 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,641.40 € *
Price list
Quantity
Price per unit*
50 pcs.
72.8280 €
100 pcs.
70.6384 €
300 pcs.
66.9970 €
*incl. VAT plus shipping costs
Subject to prior sale

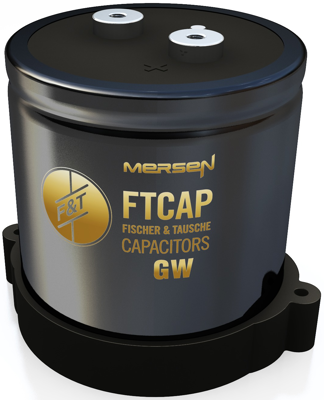

Electrolytic capacitor, 1013673, FTcap
The 1013673 electrolytic capacitor features high ripple current and thermal conducting pad. This product is best suited for heatsink mounting.
Features
- All contacts welded
- RoHS compliant
- REACH compliant
Applications
- Inverter/drives
- Traction
- Industrial
- Welding
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Capacity | 2200 µF | |
| Rated voltage (DC) | 450 V | |
| Tolerance | -10/+30 % | |
| ESR (Equivalent Series Resistance) | 51 mΩ | |
| Ripple current | 8 A | |
| Design | can | |
| Connection | screw connection | |
| diameter | 90 mm | |
| Length | 69 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
