GS47210035045 | FTcap

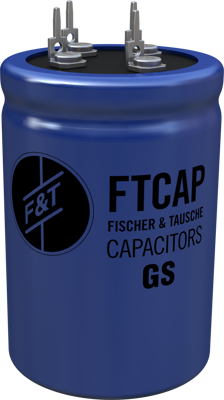

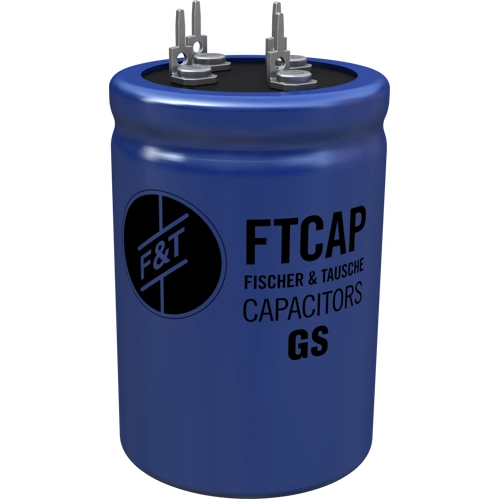

Electrolytic capacitor, 10000 µF, 100 V (DC), ±20 %, can, Ø 35 mm, GS47210035045
Unit Price (€ / pc.)
9.4248 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,884.96 € *
Price list
Quantity
Price per unit*
200 pcs.
9.4248 €
500 pcs.
9.1392 €
1000 pcs.
8.6751 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1025479, FTcap
The 1025479 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Inverter/drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 100 V | |
| Connection | PCB/solder connection | |
| Tolerance | ±20 % | |
| Design | can | |
| diameter | 35 mm | |
| max. operating temperature | 185 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 45 mm | |
| Capacity | 10000 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
| Original Packaging | Carton with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
