GS47206330035 | FTcap

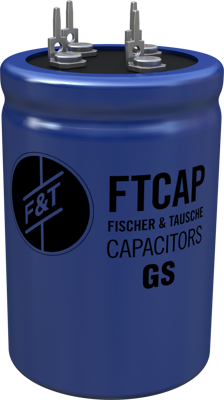

Electrolytic capacitor, 4700 µF, 63 V (DC), ±20 %, can, Ø 30 mm, GS47206330035
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,427.20 € *
Price list
Quantity
Price per unit*
500 pcs.
6.8544 €
1000 pcs.
6.6521 €
3000 pcs.
6.3070 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1031176, FTcap
The 1031176 electrolytic capacitor features a high reliability and long useful life, with all internal contacts securely welded.
Features
- High CV product
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Consumer
- Industrial
- Inverter/drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB/solder connection | |
| Rated voltage (DC) | 63 V | |
| Length | 35 mm | |
| Design | can | |
| max. operating temperature | 185 °C | |
| min. operating temperature | -40 °C | |
| diameter | 30 mm | |
| Ripple current | 2.5 A | |
| Version | polar | |
| Capacity | 4700 µF | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 61 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
