GMB47210040070 | FTcap
Electrolytic capacitor, 4700 µF, 100 V (DC), -10/+30 %, can, Ø 40 mm, GMB47210040070
Unit Price (€ / pc.)
19.0757 € *
Next delivery: 22 pcs. on 2025-09-12
Total Price:
19.08 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0757 €
5 pcs.
17.1598 €
15 pcs.
15.6009 €
50 pcs.
14.3038 €
150 pcs.
13.2090 €
*incl. VAT plus shipping costs
Subject to prior sale

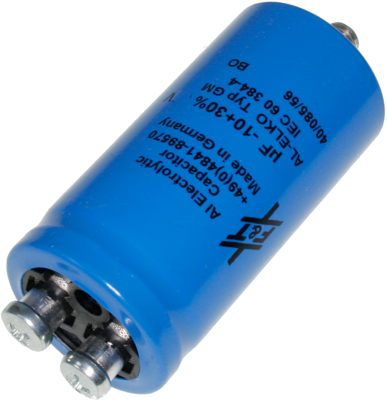

Electrolytic capacitor in aluminum can, type FTCAP GMB.
With threaded mounting studs and M 5 thread connections
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | thread | |
| diameter | 40 mm | |
| Rated voltage (DC) | 100 V | |
| Tolerance | -10/+30 % | |
| Capacity | 4700 µF | |
| Design | can | |
| Length | 70 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
