GMB15304035054 | FTcap

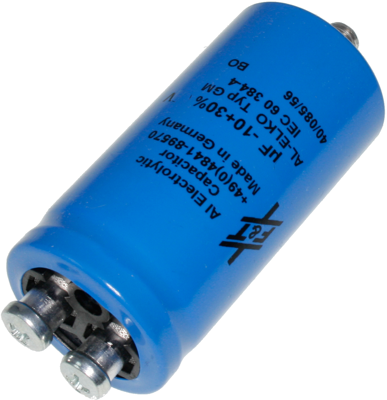

Electrolytic capacitor, 15000 µF, 40 V (DC), -10/+30 %, can, Ø 35 mm, GMB15304035054
Unit Price (€ / pc.)
14.9226 € *
Available: 103 pcs.
Total Price:
14.92 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9226 €
5 pcs.
13.4351 €
15 pcs.
12.2094 €
50 pcs.
11.1860 €
150 pcs.
10.3411 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type FTCAP GMB.
With threaded mounting studs and M 5 thread connections
Rated voltage 40 VDC.
Note: Due to the internal structure, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on a conductive surface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 15000 µF | |
| diameter | 35 mm | |
| max. operating temperature | 85 °C | |
| Length | 54 mm | |
| min. operating temperature | -40 °C | |
| Design | can | |
| Connection | thread | |
| Version | polar | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
