GMB10304035053 4302 | FTcap
Electrolytic capacitor, 10000 µF, 40 V (DC), -10/+30 %, can, Ø 35 mm, GMB10304035053 4302
Unit Price (€ / pc.)
16.3030 € *
Available: 50 pcs.
Next delivery: 200 pcs. on 2025-10-27
Total Price:
16.30 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3030 €
10 pcs.
14.3395 €
50 pcs.
13.3637 €
150 pcs.
12.7806 €
500 pcs.
12.1261 €
*incl. VAT plus shipping costs
Subject to prior sale

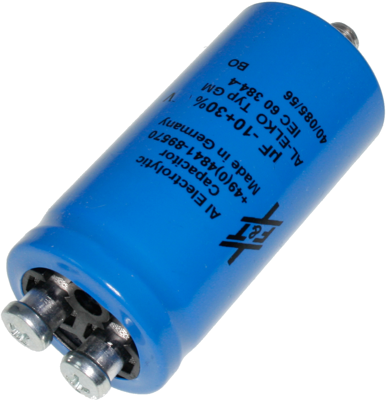

Electrolytic capacitor in aluminum can, type FTCAP GMB.
With threaded mounting studs and M 5 thread connections
Rated voltage 40 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 10000 µF | |
| diameter | 35 mm | |
| max. operating temperature | 85 °C | |
| Length | 54 mm | |
| min. operating temperature | -40 °C | |
| Design | can | |
| Connection | thread | |
| Version | polar | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
