AH22204018030 | FTcap
Electrolytic capacitor, 2200 µF, 40 V (DC), ±20 %, axial, Ø 18 mm, AH22204018030
Unit Price (€ / pc.)
2.3800 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,380.00 € *
Price list
Quantity
Price per unit*
1000 pcs.
2.3800 €
3000 pcs.
2.3086 €
5000 pcs.
2.1896 €
*incl. VAT plus shipping costs
**Subject to prior sale

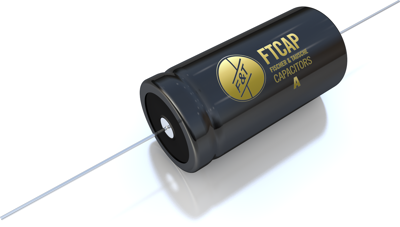

Electrolytic capacitor, 1025784, FTcap
The 1025784electrolyticic capacitor with welded axial leads offers exceptional reliability and all contacts are securely welded.
Features
- High ripple current
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Industrial
- Telecommunications
Technical specifications
| Rated voltage (DC) | 40 V | |
| Capacity | 2200 µF | |
| diameter | 18 mm | |
| Length | 30 mm | |
| Version | polar | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 174 mΩ | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 0.9 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
