AH22045014030 | FTcap

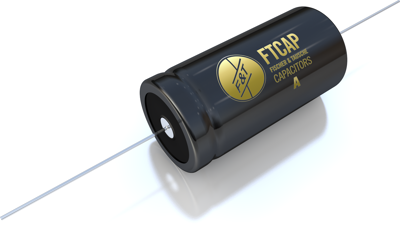

Electrolytic capacitor, 22 µF, 450 V (DC), ±20 %, axial, Ø 14 mm, AH22045014030
Unit Price (€ / pc.)
1.4280 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2,856.00 € *
Price list
Quantity
Price per unit*
2000 pcs.
1.4280 €
5000 pcs.
1.3804 €
10000 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 1033622, FTcap
The 1033622electrolyticic capacitor with welded axial leads offers exceptional reliability and all contacts are securely welded.
Features
- High ripple current
- RoHS compliant
- REACH compliant
Applications
- HiFi
- Industrial
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Capacity | 22 µF | |
| diameter | 14 mm | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Design | axial | |
| Ripple current | 0.1 A | |
| ESR (Equivalent Series Resistance) | 5067 mΩ | |
| Length | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 2,000 pieces |
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
