A47104010025 | FTcap
Electrolytic capacitor, 470 µF, 40 V (DC), -10/+30 %, axial, Ø 10 mm, A47104010025
Unit Price (€ / pc.)
2.0468 € *
Available: 104 pcs.
Next delivery: 2,000 pcs. on 2025-07-04
Leadtime: 8 Weeks **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.6541 €
100 pcs.
1.3923 €
250 pcs.
1.2019 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

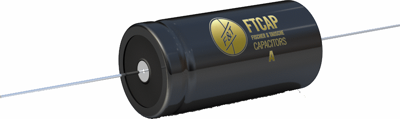

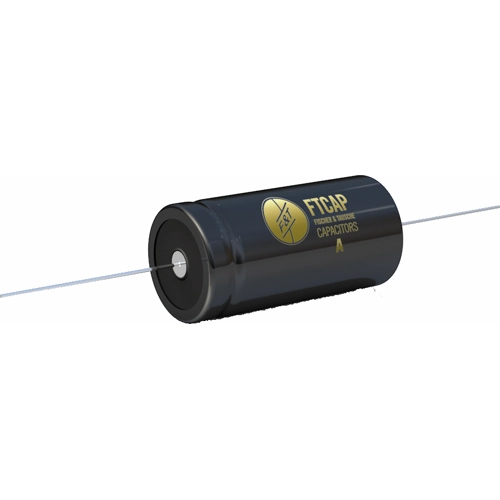

Electrolytic capacitor, A47104010025 / 1010480, FTcap

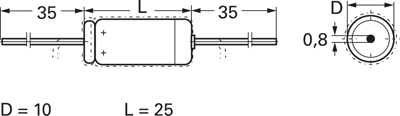

Electrolytic capacitor axial leaded 470 µF 40V (Ø x H) 10mm x 25mm
Technical specifications
| Rated voltage (DC) | 40 V | |
| Capacity | 470 µF | |
| diameter | 10 mm | |
| Length | 25 mm | |
| Version | polar | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 339 mΩ | |
| min. operating temperature | -40 °C | |
| Tolerance | -10/+30 % | |
| max. operating temperature | 85 °C | |
| Ripple current | 400 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
