A47104010025 / -10/+30 % | FTcap
Electrolytic capacitor, 470 µF, 40 V (DC), -10/+30 %, axial, Ø 10 mm, A47104010025 / -10/+30 %
Unit Price (€ / pc.)
2.0468 € *
Available: 1,676 pcs.
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.6541 €
100 pcs.
1.3923 €
250 pcs.
1.2019 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

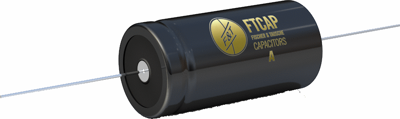

Electrolytic capacitor, A47104010025 / 1010480, FTcap

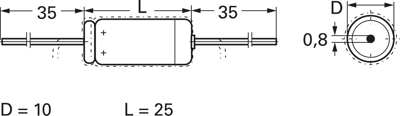

Electrolytic capacitor axial leaded 470 µF 40V (Ø x H) 10mm x 25mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 470 µF | |
| diameter | 10 mm | |
| max. operating temperature | 85 °C | |
| Length | 25 mm | |
| min. operating temperature | -40 °C | |
| Ripple current | 400 mA | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 339 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 40 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
