A22110012030 | FTcap
Electrolytic capacitor, 220 µF, 100 V (DC), ±20 %, axial, Ø 12 mm, A22110012030
Unit Price (€ / pc.)
2.4871 € *
Available: 677 pcs.
Total Price:
2.49 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4871 €
10 pcs.
2.0706 €
100 pcs.
1.7731 €
250 pcs.
1.6184 €
1000 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

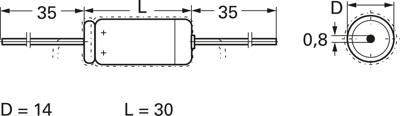

Electrolytic capacitor in insulated aluminum can, type FTCAP Typ A100.
Axial
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 100 V | |
| Length | 30 mm | |
| Design | axial | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| diameter | 12 mm | |
| Ripple current | 400 mA | |
| Version | polar | |
| Capacity | 220 µF | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 724 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
