A15045014030 | FTcap

Electrolytic capacitor, 15 µF, 450 V (DC), -10/+30 %, axial, Ø 14 mm, A15045014030

Order No.: 14D220
EAN: 4099879873132
MPN:
A15045014030
1010172
Series: Serie A

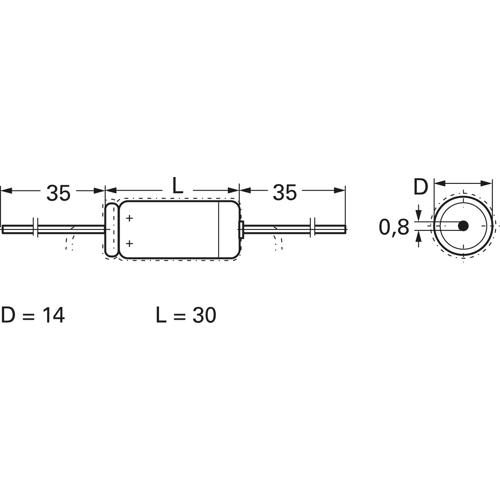

A15045014030 FTcap Electrolytic Capacitors Image 1
A15045014030 FTcap Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.4871 € *
Available: 834 pcs.
Total Price:
4.97 € *
Price list
Quantity
Price per unit*
2 pcs.
2.4871 €
10 pcs.
2.1896 €
50 pcs.
1.9397 €
250 pcs.
1.7374 €
500 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor in insulated aluminum can, type FTCAP Typ A100.

Axial

Rated voltage 450 VDC.

Technical specifications
Filter Property Value
Design axial
Version polar
Length 30 mm
Rated voltage (DC) 450 V
min. operating temperature -40 °C
Tolerance -10/+30 %
Capacity 15 µF
diameter 14 mm
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 85322200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
