A10302525049 | FTcap
Electrolytic capacitor, 10000 µF, 25 V (DC), -10/+30 %, axial, Ø 25 mm, A10302525049
Unit Price (€ / pc.)
5.6763 € *
Available: 233 pcs.
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
4.9861 €
100 pcs.
4.3792 €
250 pcs.
4.2126 €
1000 pcs.
3.9389 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, A10302525049 / 1010141, FTcap

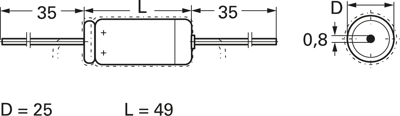

Electrolytic capacitor axial leaded 10000 µF 25V (Ø x H) 25mm x 49mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 5.56 A | |
| Rated voltage (DC) | 25 V | |
| Tolerance | -10/+30 % | |
| Design | axial | |
| diameter | 25 mm | |
| ESR (Equivalent Series Resistance) | 8 mΩ | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 49 mm | |
| Capacity | 10000 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
