I8-10+I8 | FTcap

Insulating washer, I8-10+I8

Order No.: 16D450
EAN: 4099879883629
MPN:
I8-10+I8
1004616-50212
Series: I8
I8-10+I8 FTcap Accessories (Electrolytic Capacitors)
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Available: 332 pcs.
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1658 €
10 pcs.
1.5470 €
25 pcs.
1.3209 €
50 pcs.
1.1543 €
100 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

Insulating washers, I8-10+I8 1004616/50212, FTcap

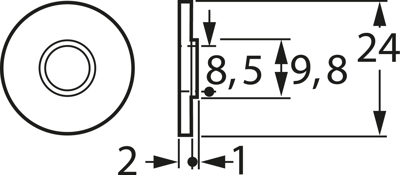

Suitable, for example, for capacitors with threaded mounting studs. The kit consists of an insulating washer with insulation shoulder for the mounting hole and a flat mating washer for fixation of the nuts. Dimensions of the mating washer (diameter/ center hole/ thickness): 24/8.5/2.0 mm or 30/13/2.0 mm.

Technical attributes (type, washer diameter, threaded bolt size, mounting hole diameter): I 8-10, 24 mm, M 8, 10 mm.

Technical specifications
Filter Property Value
Product type insulator
diameter 25 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39259080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
