K-AGT069 | Frolyt
Electrolytic capacitor, 100 µF, 40 V (DC), -20/+20 %, axial, Ø 14 mm, K-AGT069
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 8 Weeks

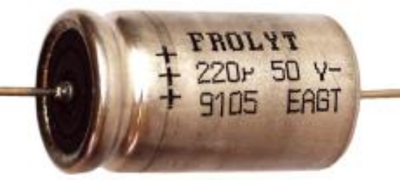

Aluminum electrolytic capacitor, K-AGT069, Frolyt
Aluminum electrolytic capacitor, Low voltage, Axial, Pulse proof, Polarized, Endurance at least 2.500h at +150°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 40 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| diameter | 14 mm | |
| ESR (Equivalent Series Resistance) | 0.5 Ω | |
| Tolerance | -20/+20 % | |
| Length | 25.5 mm | |
| Design | axial | |
| Capacity | 100 µF | |
| Ripple current | 455 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 600 pieces |
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
