E-RY3030 | Frolyt

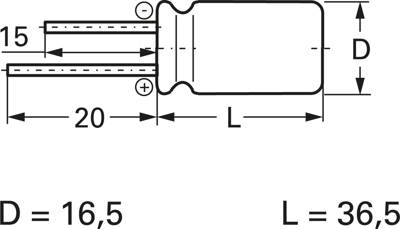

Electrolytic capacitor, 10000 µF, 10 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-RY3030
Unit Price (€ / pc.)
1.428 € *
Standard delivery time from the manufacturer is: 8 Weeks
Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.
With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1
Rated voltage 10 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 10 V | |
| Length | 36.5 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| diameter | 16.5 mm | |
| Version | polar | |
| Capacity | 10000 µF | |
| Tolerance | ±20 % | |
| Grid | 7.5 mm | |
| ESR (Equivalent Series Resistance) | 50 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
