E-RY3009 | Frolyt

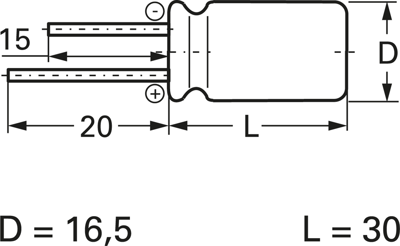

Electrolytic capacitor, 2200 µF, 35 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-RY3009

Order No.: 12D3974
EAN: 4099879868398
MPN:
E-RY3009
E-RY3009 2200/35 16,5X30,0
Series: ERY
E-RY3009 Frolyt Electrolytic Capacitors Image 1
E-RY3009 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Available: 453 pcs.
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
10 pcs.
2.1301 €
100 pcs.
1.8326 €
250 pcs.
1.6541 €
1000 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 35 VDC.

Technical specifications
Filter Property Value
Grid 7.5 mm
max. operating temperature 105 °C
min. operating temperature -55 °C
Version polar
Rated voltage (DC) 35 V
Tolerance ±20 %
Capacity 2200 µF
Length 30 mm
diameter 16.5 mm
Design radial
ESR (Equivalent Series Resistance) 90 mΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
