E-RY3005 | Frolyt

Electrolytic capacitor, 470 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-RY3005

Order No.: 12D3952
EAN: 4099879868299
MPN:
E-RY3005
E-RY3005 470/63 12,5X25,0
Series: ERY

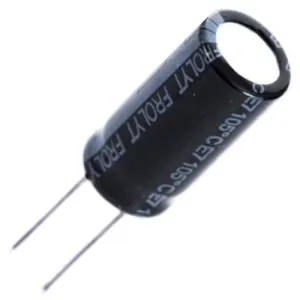

E-RY3005 Frolyt Electrolytic Capacitors Image 1
E-RY3005 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.2376 € *
Available: 725 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
0.8806 €
100 pcs.
0.7616 €
500 pcs.
0.6545 €
1000 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt ERY.

With particularly low ESR/Z, radial wire ends for vertical mounting, to DIN IEC 60384-1

Rated voltage 63 VDC.

Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 240 mΩ
Design radial
Grid 5 mm
Version polar
Length 25 mm
Rated voltage (DC) 63 V
min. operating temperature -55 °C
Tolerance ±20 %
Capacity 470 µF
diameter 12.5 mm
max. operating temperature 105 °C
Logistics
Property Value
Customs tariff number 85322200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
