E-RS3065 | Frolyt

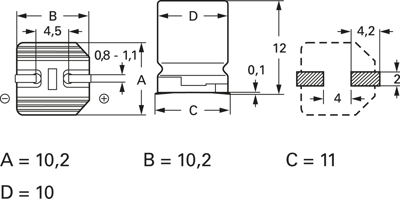

Electrolytic capacitor, 100 µF, 63 V (DC), ±20 %, SMD, pitch 4.5 mm, Ø 10.2 mm, E-RS3065
Unit Price (€ / pc.)
1.5946 € *
Available: 1,123 pcs.
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
0.9996 €
50 pcs.
0.8806 €
250 pcs.
0.7616 €
1000 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD aluminum electrolytic capacitor, type Frolyt ERS.
For surface mounting and high soldering heat load, suitable for use at temperatures of up to +105 °C. Compliant with DIN IEC 60384-18 (without quality confirmation). Capacitance tolerance ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 63 V | |
| Length | 12 mm | |
| Design | SMD | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| diameter | 10.2 mm | |
| Version | polar | |
| Capacity | 100 µF | |
| Tolerance | ±20 % | |
| Grid | 4.5 mm | |
| ESR (Equivalent Series Resistance) | 1.43 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
