E-RS3054 | Frolyt
Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, SMD, pitch 4.5 mm, Ø 10.2 mm, E-RS3054
Unit Price (€ / pc.)
1.2376 € *
Available: 1,473 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
0.7735 €
50 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD aluminum electrolytic capacitor, type Frolyt ERS.
For surface mounting and high soldering heat load, suitable for use at temperatures of up to +105 °C. Compliant with DIN IEC 60384-18 (without quality confirmation). Capacitance tolerance ±20 %

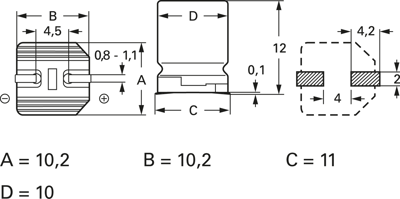

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 35 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C | |
| Grid | 4.5 mm | |
| diameter | 10.2 mm | |
| ESR (Equivalent Series Resistance) | 860 mΩ | |
| Tolerance | ±20 % | |
| Length | 12 mm | |
| Design | SMD | |
| Capacity | 220 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
