E-RS3026 | Frolyt

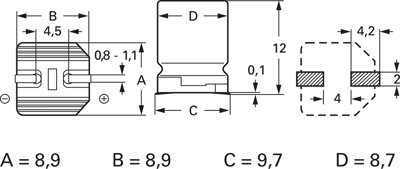

Electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, SMD, pitch 4.5 mm, Ø 8.9 mm, E-RS3026
Unit Price (€ / pc.)
1.3923 € *
Available: 1,573 pcs.
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
10 pcs.
0.8687 €
50 pcs.
0.7616 €
250 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD aluminum electrolytic capacitor, type Frolyt ERS.
For surface mounting and high soldering heat load, suitable for use at temperatures of up to +105 °C. Compliant with DIN IEC 60384-18 (without quality confirmation). Capacitance tolerance ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % | |
| Design | SMD | |
| diameter | 8.9 mm | |
| ESR (Equivalent Series Resistance) | 1.6 Ω | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Length | 12 mm | |
| Capacity | 100 µF | |
| Grid | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
