E-RS1026 | Frolyt

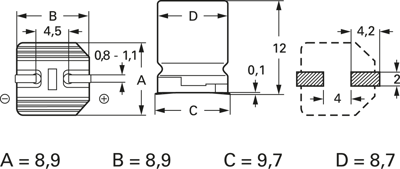

Electrolytic capacitor, 470 µF, 10 V (DC), ±20 %, SMD, pitch 4.5 mm, Ø 8.9 mm, E-RS1026
Order No.: 10D406
EAN: 4099879865212
MPN:
E-RS1026
E-RS1026 470/10 8,9X12,0
This item is no longer available.
As an alternative, we recommend the following item:
Electrolytic capacitor, 47 µF, 100 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KM0228
Order No.: 12D526
Manufacturer: Frolyt
per pc. 0.7378 € *
SMD aluminum electrolytic capacitor, type Frolyt ERS.
For surface mounting and high soldering heat load, suitable for use at temperatures of up to +105 °C. Compliant with DIN IEC 60384-18 (without quality confirmation). Capacitance tolerance ±20 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 10 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 105 °C | |
| Grid | 4.5 mm | |
| diameter | 8.9 mm | |
| ESR (Equivalent Series Resistance) | 640 mΩ | |
| Tolerance | ±20 % | |
| Length | 12 mm | |
| Design | SMD | |
| Capacity | 470 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
