E-RF3017 | Frolyt

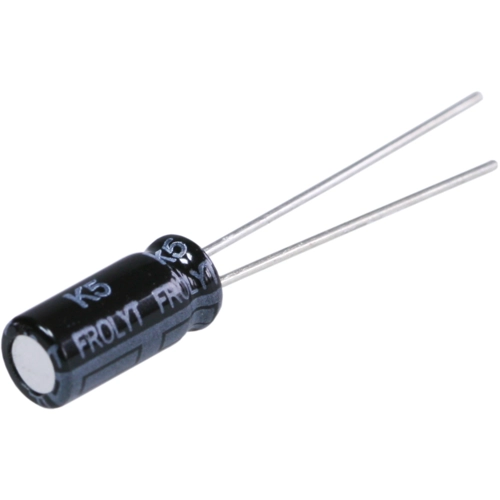

Electrolytic capacitor, 100 µF, 10 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm, E-RF3017
Unit Price (€ / pc.)
0.7711 € *
Available: 2,978 pcs.
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7711 €
10 pcs.
0.5510 €
100 pcs.
0.4701 €
500 pcs.
0.4094 €
1000 pcs.
0.3725 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt ERF.
Resistant against switching transients, low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 10 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 10 V | |
| Tolerance | ±20 % | |
| Design | radial | |
| diameter | 5.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Length | 12 mm | |
| Capacity | 100 µF | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
