E-KSU415 | Frolyt
Bipolar electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KSU415
Unit Price (€ / pc.)
1.5934 € *
Available: 1,073 pcs.
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5934 €
10 pcs.
1.1388 €
100 pcs.
0.9734 €
500 pcs.
0.8461 €
1000 pcs.
0.7687 €
*incl. VAT plus shipping costs
Subject to prior sale
Bipolar electrolytic capacitor, E-KSU415, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Version | bipolar | |
| ESR (Equivalent Series Resistance) | 1.16 Ω | |

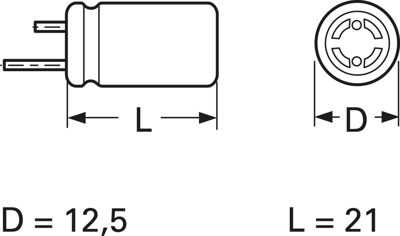

| Length | 21 mm | |
| diameter | 12.5 mm | |
| Rated voltage (DC) | 35 V | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Capacity | 220 µF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
