E-KSU373 | Frolyt

Bipolar electrolytic capacitor, 22 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-KSU373

Order No.: 12D748
EAN: 4099879872012
MPN:
E-KSU373
E-KSU373 22/63 8,7X12,7
Series: EKSU

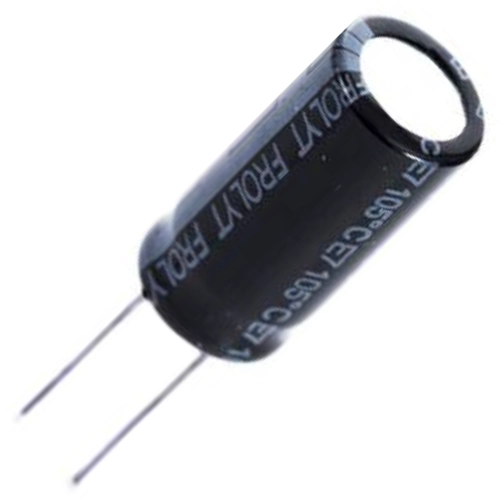

E-KSU373 Frolyt Electrolytic Capacitors Image 1
E-KSU373 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Available: 2,528 pcs.
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.6545 €
100 pcs.
0.5593 €
500 pcs.
0.4879 €
1000 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

Bipolar electrolytic capacitor, E-KSU373, Frolyt

Aluminum electrolytic capacitor

Features

  • Low-voltage-electrolytic capacitor
  • Small dimensions
  • Insulated/Non polarized
  • Pulse-proof
  • Service life 1000...2500 h/+105 °C
Technical specifications
Filter Property Value
min. operating temperature -40 °C
Grid 5 mm
Tolerance ±20 %
Version bipolar
Rated voltage (DC) 63 V
max. operating temperature 105 °C
Capacity 22 µF

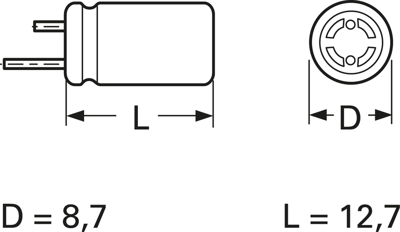

Length 12.7 mm
diameter 8.7 mm
ESR (Equivalent Series Resistance) 8.68 Ω
Design radial
Logistics
Property Value
Customs tariff number 85322200
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
