E-KSU340 | Frolyt
Bipolar electrolytic capacitor, 22 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm, E-KSU340
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 8 Weeks
Bipolar electrolytic capacitor, E-KSU340, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |

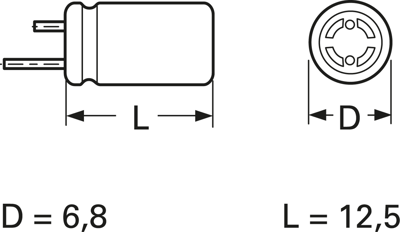

| diameter | 6.8 mm | |
| ESR (Equivalent Series Resistance) | 11.57 Ω | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 85 °C | |
| Tolerance | ±20 % | |
| Length | 12.5 mm | |
| Capacity | 22 µF | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Version | bipolar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
