E-KSU301 | Frolyt

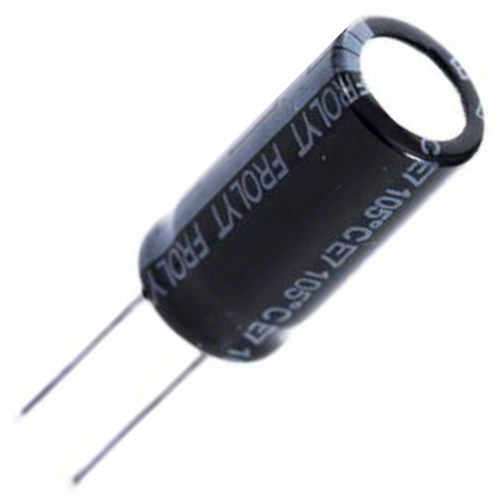

Bipolar electrolytic capacitor, 10 µF, 100 V (DC), ±20 %, radial, pitch 5 mm, Ø 8.7 mm, E-KSU301
Unit Price (€ / pc.)
1.2614 € *
Available: 1,927 pcs.
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
10 pcs.
0.7854 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Bipolar electrolytic capacitor, E-KSU301, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 100 V | |
| Tolerance | ±20 % | |
| Design | radial | |

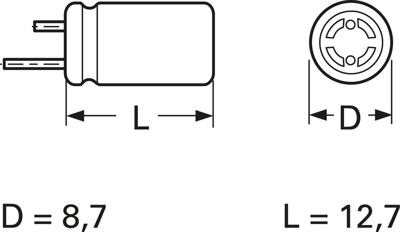

| diameter | 8.7 mm | |
| ESR (Equivalent Series Resistance) | 15.92 Ω | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | bipolar | |
| Length | 12.7 mm | |
| Capacity | 10 µF | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
