E-KSU041 | Frolyt

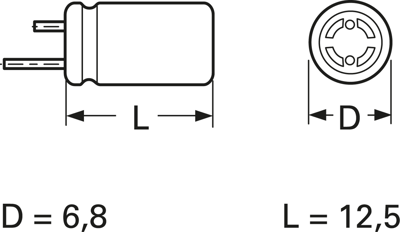

Bipolar electrolytic capacitor, 47 µF, 16 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.8 mm, E-KSU041

Order No.: 12D712
EAN: 4099879871800
MPN:
E-KSU041
E-KSU041 47/16 6,8X12,5
Series: EKSU
E-KSU041 Frolyt Electrolytic Capacitors Image 1
E-KSU041 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available: 1,452 pcs.
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4760 €
10 pcs.
0.3332 €
100 pcs.
0.2856 €
500 pcs.
0.2618 €
1000 pcs.
0.2261 €
*incl. VAT plus shipping costs
Subject to prior sale

Bipolar electrolytic capacitor, E-KSU041, Frolyt

Aluminum electrolytic capacitor

Features

  • Low-voltage-electrolytic capacitor
  • Small dimensions
  • Insulated/Non polarized
  • Pulse-proof
  • Service life 1000...2500 h/+105 °C
Technical specifications
Filter Property Value
min. operating temperature -40 °C
Grid 2.5 mm
Tolerance ±20 %
Version bipolar
Rated voltage (DC) 16 V
max. operating temperature 85 °C
Capacity 47 µF
Length 12.5 mm
diameter 6.8 mm
ESR (Equivalent Series Resistance) 6.77 Ω
Design radial
Logistics
Property Value
Customs tariff number 85322200
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
