E-KSU035 | Frolyt
Bipolar electrolytic capacitor, 47 µF, 10 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 5.5 mm, E-KSU035
Unit Price (€ / pc.)
0.4641 € *
Available: 336 pcs.
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4641 €
50 pcs.
0.3451 €
250 pcs.
0.2689 €
1000 pcs.
0.2356 €
2000 pcs.
0.2094 €
*incl. VAT plus shipping costs
Subject to prior sale
Bipolar electrolytic capacitor, E-KSU035, Frolyt
Aluminum electrolytic capacitor
Features
- Low-voltage-electrolytic capacitor
- Small dimensions
- Insulated/Non polarized
- Pulse-proof
- Service life 1000...2500 h/+105 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 10 V | |
| Tolerance | ±20 % | |
| Design | radial | |

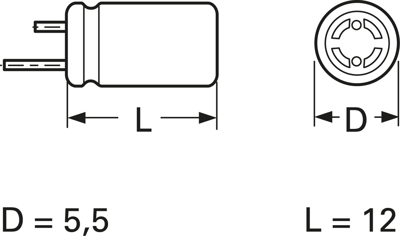

| diameter | 5.5 mm | |
| ESR (Equivalent Series Resistance) | 8.13 Ω | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | bipolar | |
| Length | 12 mm | |
| Capacity | 47 µF | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
