E-KS3597 | Frolyt

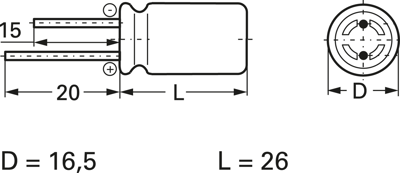

Electrolytic capacitor, 3300 µF, 16 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KS3597
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 8 Weeks
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 16 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 16 V | |
| Tolerance | ±20 % | |
| Design | radial | |
| diameter | 16.5 mm | |
| ESR (Equivalent Series Resistance) | 100 mΩ | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 26 mm | |
| Capacity | 3300 µF | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
