E-KS3579 | Frolyt

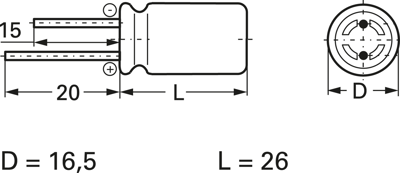

Electrolytic capacitor, 220 µF, 100 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KS3579
Unit Price (€ / pc.)
2.7608 € *
Available: 391 pcs.
Total Price:
2.76 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7608 €
10 pcs.
1.7255 €
50 pcs.
1.5232 €
250 pcs.
1.3090 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

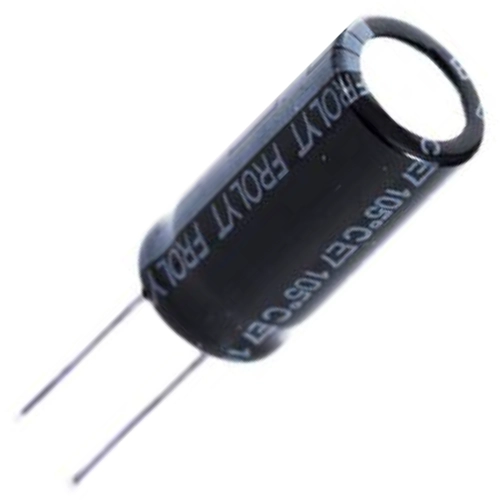

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 100 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 100 V | |
| Length | 26 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 16.5 mm | |
| Version | polar | |
| Capacity | 220 µF | |
| Tolerance | ±20 % | |
| Grid | 7.5 mm | |
| ESR (Equivalent Series Resistance) | 510 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
