E-KS3565 | Frolyt

Electrolytic capacitor, 4700 µF, 25 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KS3565

Order No.: 12D128
EAN: 4099879867773
MPN:
E-KS3565
E-KS3565 4700/25 16,5X36,5
Series: EKS

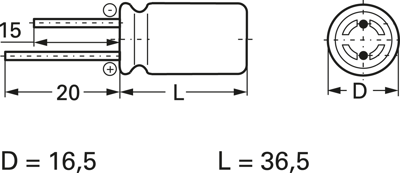

E-KS3565 Frolyt Electrolytic Capacitors Image 1
E-KS3565 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Next delivery: 1,069 pcs. on 2025-08-22
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
1.8564 €
50 pcs.
1.6303 €
250 pcs.
1.4042 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.

Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1

Rated voltage 25 VDC.

Technical specifications
Filter Property Value
Tolerance ±20 %
min. operating temperature -40 °C
Version polar
diameter 16.5 mm
max. operating temperature 105 °C
Grid 7.5 mm
Rated voltage (DC) 25 V
Length 36.5 mm
Design radial
Capacity 4700 µF
ESR (Equivalent Series Resistance) 70 mΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
