E-KS3390 | Frolyt

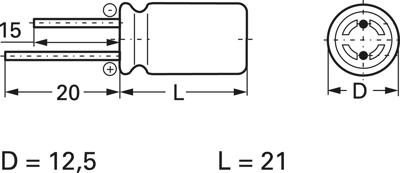

Electrolytic capacitor, 470 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, E-KS3390
Unit Price (€ / pc.)
1.4518 € *
Available: 2,258 pcs.
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
0.9044 €
50 pcs.
0.7973 €
250 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 50 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 470 µF | |
| diameter | 12.5 mm | |
| max. operating temperature | 105 °C | |
| Length | 21 mm | |
| min. operating temperature | -40 °C | |
| Grid | 5 mm | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 340 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 50 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
