E-KS3092 | Frolyt

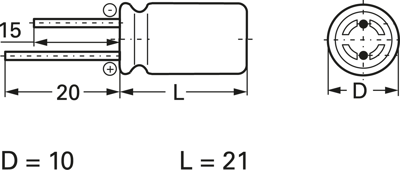

Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-KS3092
Unit Price (€ / pc.)
1.4042 € *
Available: 1,900 pcs.
Leadtime: On Request **
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
0.8806 €
50 pcs.
0.7735 €
250 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 16 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 250 mΩ | |
| Capacity | 1000 µF | |
| Length | 21 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 16 V | |
| Grid | 5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
