E-KS3085 | Frolyt
Electrolytic capacitor, 1000 µF, 10 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, E-KS3085
Unit Price (€ / pc.)
0.8330 € *
Available: 0 pcs.
Next delivery: 2,128 pcs. on 2025-07-18
Leadtime: On Request **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5950 €
100 pcs.
0.5117 €
500 pcs.
0.4403 €
1000 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKS.
Radial connecting wires for vertical mounting on PCBs. Compliant with DIN IEC 60384-1
Rated voltage 10 VDC.
Technical specifications
| min. operating temperature | -40 °C | |
| Capacity | 1000 µF | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Version | polar | |

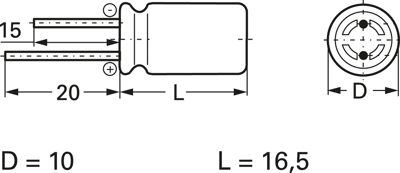

| Length | 16.5 mm | |
| Design | radial | |
| ESR (Equivalent Series Resistance) | 320 mΩ | |
| Rated voltage (DC) | 10 V | |
| diameter | 10 mm | |
| Grid | 5 mm |
Download
Logistics
| Customs tariff number | 85322200 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
