E-KR3398 | Frolyt

Electrolytic capacitor, 1000 µF, 16 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 12.5 mm, E-KR3398

Order No.: 12D6068
EAN: 4099879870957
MPN:
E-KR3398
E-KR3398 1000/16 12,5X30,0
Series: EKR

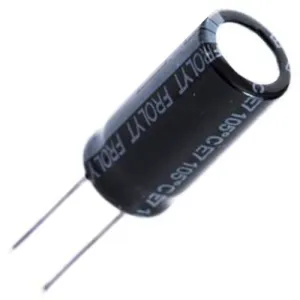

E-KR3398 Frolyt Electrolytic Capacitors Image 1
E-KR3398 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available: 1,306 pcs.
Total Price:
13.45 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3447 €
50 pcs.
1.1900 €
250 pcs.
1.0234 €
1000 pcs.
0.8925 €
2500 pcs.
0.8211 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.

Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 16 VDC.

Technical specifications
Filter Property Value
Grid 5 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Version polar
Rated voltage (DC) 16 V
Tolerance -10/+50 %
Capacity 1000 µF

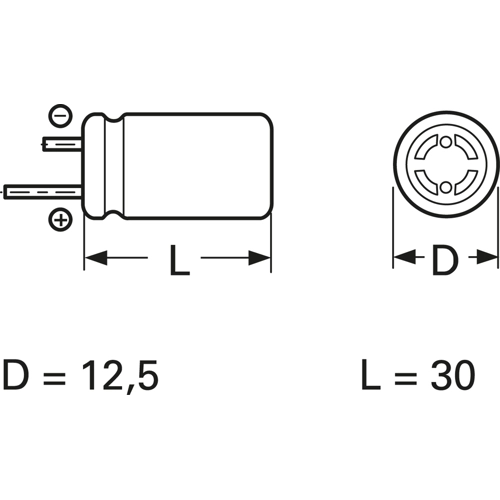

Length 30 mm
diameter 12.5 mm
Design radial
ESR (Equivalent Series Resistance) 180 mΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
