E-KR3354 | Frolyt

Electrolytic capacitor, 2200 µF, 25 V (DC), -10/+50 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KR3354

Order No.: 12D6202
EAN: 4099879871145
MPN:
E-KR3354
E-KR3354 220/25 16,5X36,5
Series: EKR

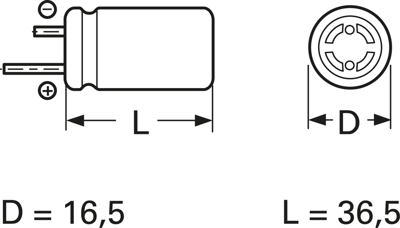

E-KR3354 Frolyt Electrolytic Capacitors Image 1
E-KR3354 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available: 342 pcs.
Total Price:
6.75 € *
Price list
Quantity
Price per unit*
3 pcs.
2.2491 €
15 pcs.
1.9159 €
75 pcs.
1.6898 €
400 pcs.
1.4875 €
800 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.

Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 25 VDC.

Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 80 mΩ
Length 36.5 mm
max. operating temperature 105 °C
Version polar
diameter 16.5 mm
Capacity 2200 µF
Rated voltage (DC) 25 V
Tolerance -10/+50 %
min. operating temperature -40 °C
Grid 7.5 mm
Design radial
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
