E-KR3351 | Frolyt

Electrolytic capacitor, 470 µF, 63 V (DC), -10/+50 %, radial, pitch 7.5 mm, Ø 16.5 mm, E-KR3351

Order No.: 12D634
EAN: 4099879871329
MPN:
E-KR3351
E-KR3351 470/63 16,5X30,0
Series: EKR
E-KR3351 Frolyt Electrolytic Capacitors Image 1
E-KR3351 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.9869 € *
Available: 221 pcs.
Total Price:
2.99 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9869 €
10 pcs.
1.8683 €
50 pcs.
1.6303 €
250 pcs.
1.4161 €
1000 pcs.
1.2376 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.

Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 63 VDC.

Technical specifications
Filter Property Value

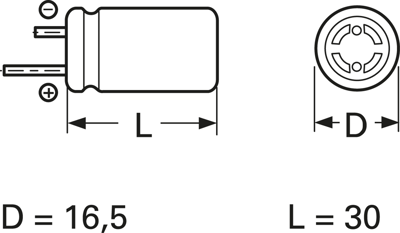

Grid 7.5 mm
max. operating temperature 105 °C
min. operating temperature -40 °C
Version polar
Rated voltage (DC) 63 V
Tolerance -10/+50 %
Capacity 470 µF
Length 30 mm
diameter 16.5 mm
Design radial
ESR (Equivalent Series Resistance) 200 mΩ
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
