E-KR3274 | Frolyt

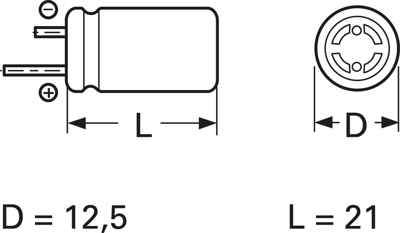

Electrolytic capacitor, 470 µF, 25 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 12.5 mm, E-KR3274
Unit Price (€ / pc.)
1.2733 € *
Available: 938 pcs.
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
0.9092 €
100 pcs.
0.7771 €
500 pcs.
0.6759 €
1000 pcs.
0.6140 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.
Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1
Rated voltage 25 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 25 V | |
| Length | 21 mm | |
| Design | radial | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| diameter | 12.5 mm | |
| Version | polar | |
| Capacity | 470 µF | |
| Tolerance | -10/+50 % | |
| Grid | 5 mm | |
| ESR (Equivalent Series Resistance) | 300 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
