E-KR3113 | Frolyt

Electrolytic capacitor, 100 µF, 16 V (DC), -10/+50 %, radial, pitch 5 mm, Ø 10 mm, E-KR3113

Order No.: 12D6060
EAN: 4099879870926
MPN:
E-KR3113
E-KR3113 100/16 10,0X12,7
Series: EKR

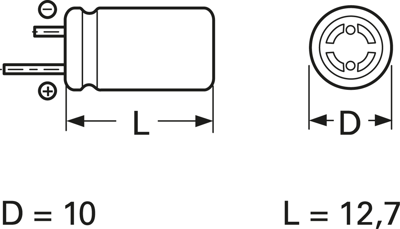

E-KR3113 Frolyt Electrolytic Capacitors Image 1
E-KR3113 Frolyt Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Available: 830 pcs.
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5236 €
50 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, insulated aluminum can, type Frolyt EKR.

Low impedance (Z), radial wire ends for vertical mounting on PCBs, to DIN IEC 60384-1

Rated voltage 16 VDC.

Technical specifications
Filter Property Value
max. operating temperature 105 °C
diameter 10 mm
Rated voltage (DC) 16 V
Version polar
Grid 5 mm
Capacity 100 µF
ESR (Equivalent Series Resistance) 1.75 Ω
Tolerance -10/+50 %
min. operating temperature -40 °C
Design radial
Length 12.7 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
